A palletiser, conveyor transfer or robotic cell may need safeguarding that stops hazardous motion without restricting normal production. The decision between light curtains vs safety scanners is therefore not just a product choice. It affects machine layout, operator access, stopping performance, installation work and the likelihood of nuisance trips on shift.
Both devices are electro-sensitive protective equipment used to detect people entering a hazardous area. Both can be integrated into a safety control system to initiate a safe stop. Their sensing geometry, however, is fundamentally different. That difference determines where each device will perform well and where it will create unnecessary complications.

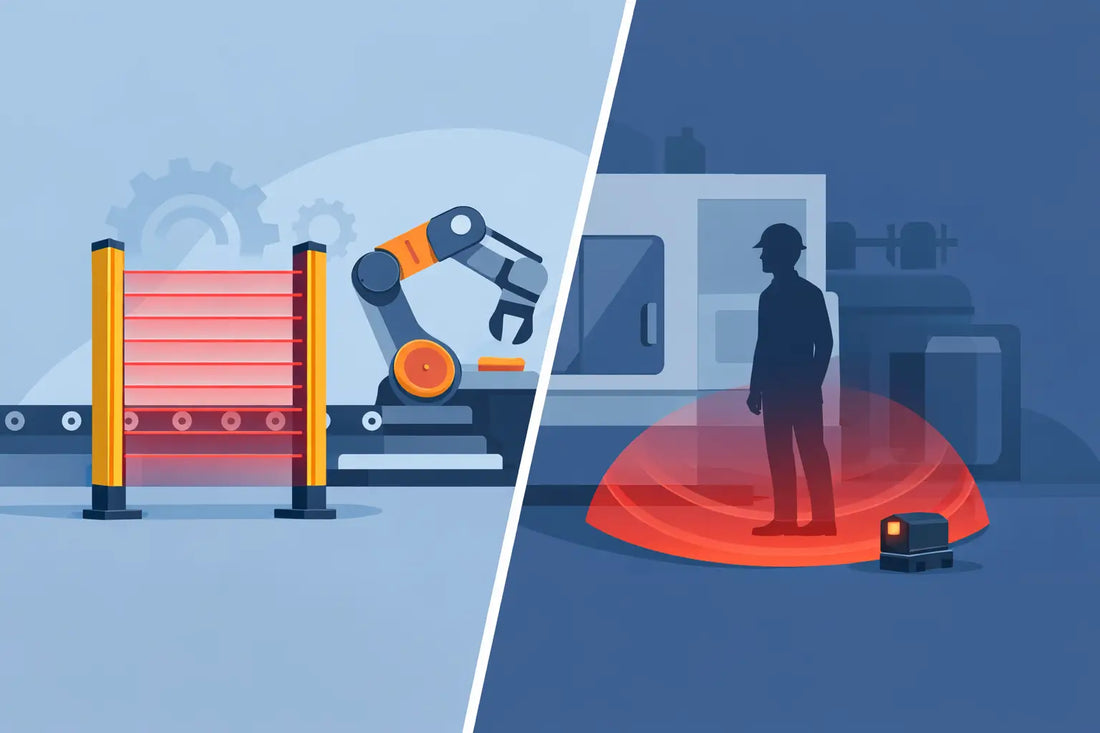

Light curtains vs safety scanners: the core difference
A safety light curtain creates a straight, planar detection field between a transmitter and receiver. If an object interrupts one or more infrared beams, the curtain sends a safety signal to the machine control system. The protected area is defined by the height and position of the curtain, making it particularly effective for guarding an opening or point of access.
A safety laser scanner uses laser measurement to monitor a programmed area on the floor or around a machine. It can create one or more two-dimensional protective fields with complex shapes. When a person enters the protective field, the scanner initiates the required safety response. Warning fields can also be configured to slow equipment or provide an earlier notification before a protective field is breached.
In practical terms, light curtains protect a line. Safety scanners protect an area. That simple distinction is useful, but it is not enough for specification. The final selection must account for the risk assessment, required performance level or SIL, machine stopping time, reach-through and reach-over risk, access frequency, environmental conditions and the required restart method.
Where safety light curtains are the better fit
Light curtains are usually the direct solution where operators need repeated access through a defined opening. Typical examples include the load and unload side of a press, packaging machine, case erector, cartoner, assembly station or automated machining cell.
Their main advantage is precise access protection. A correctly selected curtain can detect fingers, hands or whole-body access depending on its resolution and mounting arrangement. This allows the protective device to be positioned at a calculated safety distance from the hazard, based on the machine stopping time and the applicable safeguarding standard.
For manual loading stations, a light curtain can provide a more productive alternative to a fixed guard and interlocked gate. The operator can place a component, clear the protected zone and allow the machine cycle to continue without opening a physical door. Where material needs to pass through the sensing field, functions such as muting may allow pallets, cartons or product to move through under controlled conditions while maintaining personnel protection.
Light curtains also suit installations with limited floor space. They mount to the machine frame or guarding structure, and their vertical plane is easy for operators and maintenance personnel to understand. Alignment is generally straightforward on a rigid machine frame, particularly when appropriate brackets and protection are included in the design.
There are limits. A light curtain does not protect access around its sides, under it or over it unless the surrounding fixed guarding and device arrangement address those routes. On a wide-open robotic or palletising cell, attempting to cover every entry path with multiple curtains can become costly and difficult to maintain. Beam interruption from swarf, steam, dust accumulation or poorly controlled material movement can also cause unwanted stops.
Resolution and safety distance matter
Choosing a curtain based on protective height alone is a common mistake. Resolution is equally significant. Hand protection requires a finer resolution than whole-body detection, and the resolution influences the minimum safety distance from the hazard. A curtain mounted too close to a dangerous point of operation may allow a person to reach the hazard before motion has stopped.
The safety function must be calculated and validated as a complete system. This includes sensor response time, safety controller or relay response time, drive or contactor stopping behaviour, brake performance and the machine’s actual stopping time. A device with high safety integrity cannot compensate for a machine that takes too long to stop.
Where safety scanners are the better fit
Safety scanners are well suited to larger, irregular or changing access areas. They are commonly used around robotic cells, end-of-line palletisers, automated guided vehicles, conveyor interfaces and machinery where conventional perimeter guarding would obstruct material flow or consume excessive floor space.
A scanner can monitor a curved or angled protective field around the open side of a cell. This is useful where pallets enter from one direction, operators approach from another and fixed barriers define the remaining boundary. Rather than installing several separate guarding devices, the scanner can be programmed to follow the usable floor area.
For mobile equipment, safety scanners are often essential. An autonomous mobile robot or automated guided vehicle needs protective fields that change with speed, direction and load state. A larger field may be selected while travelling at higher speed, while a smaller field may apply during low-speed positioning. Warning fields can trigger a controlled speed reduction before the machine reaches the protective stop field.
On fixed machinery, scanners can also support more flexible access. A maintenance technician can enter a defined area without opening a gate, provided the scanner’s protective field covers every foreseeable approach. This can reduce mechanical guard hardware, but it requires careful design discipline. A scanner should never be treated as a shortcut around a proper guarding layout.
Scanner limitations require careful layout control
A laser scanner is normally mounted close to floor level and detects legs or lower-body entry into its scanning plane. This means it may not detect someone reaching into a hazard from above, climbing over a barrier, stepping onto a platform or approaching from an unmonitored level. Fixed guards, interlocked gates and other protective measures may still be required.
The field must also account for obstructions and shadows. Pallets, bins, posts, conveyors and machine structures can create areas the scanner cannot see. A scanner positioned where it is exposed to forklifts, product impact or routine washdown will need physical protection and an environmental suitability review.
Contamination matters as well. Dust, oil mist, steam, reflective surfaces and accumulated debris can affect availability, depending on the scanner model and application. In mines, mills, timber processing and heavy materials handling, a light curtain may be less suitable at one access point but more dependable than a scanner at another. There is no universal winner.
Selecting the device around the application
Start with the hazardous movement and every route a person can take to reach it. A simple front-facing loading aperture usually points towards a light curtain. An open robot cell with several angled approaches often points towards a scanner. If the machine has both conditions, a combined solution may be the safest and most economical arrangement.
For example, a robotic palletising cell may use fixed mesh guarding on three sides, an interlocked access gate for maintenance and a safety scanner at the pallet discharge zone. If operators also need to manually present product at a separate station, a light curtain can protect that opening. Each device then performs the job it is best suited to rather than being forced to cover every risk.
The required safety function should then be defined in the machine safety design. This includes the target performance level or SIL, safe stop category, manual reset arrangement, prevention of unexpected restart, safety controller logic and fault diagnostics. Australian machine safeguarding work commonly draws on the AS 4024 series alongside the relevant ISO and IEC functional safety requirements. The applicable standards and site requirements should be confirmed for the specific machine and industry.
Integration, commissioning and uptime
Light curtains and safety scanners need more than a pair of safety outputs connected to a relay. The machine control system must respond predictably to an intrusion, and operators must have a clear, controlled way to reset the safety function after the area is confirmed clear.
Manual reset controls should be located outside the hazardous zone with adequate visibility of the protected area. A reset must not automatically restart hazardous motion. On larger cells, this may require additional visibility measures, access controls or operating procedures so that a person cannot remain hidden within the safeguarded space.
Commissioning should include verification of detection coverage, safety distances, stopping times, field configuration, muting sequence where used, restart prevention and fault response. These checks should be documented and repeated after substantial machine changes. A scanner field that was suitable before a conveyor extension or pallet location change may no longer cover the real access routes.
Availability also deserves attention. The best safety device is one that protects people without creating avoidable production interruptions. Protect sensors from impact, route cables appropriately, allow access for cleaning, set realistic maintenance checks and train operators not to bypass devices when a fault occurs. Repeated nuisance trips are usually a design signal, not an operator problem.
For new machinery, upgrades and replacement projects, the most reliable choice comes from reviewing the guarding concept before hardware is ordered. Tech Source can assist with practical device selection, safety system integration and application support where light curtains, scanners, controllers and machine motion all need to work as one engineered solution.
