A conveyor can stop on a missed product, a cylinder can overtravel on a missed position signal, and a pump can run dry when level detection is unreliable. Selecting between the available types of proximity sensors is therefore an application decision, not simply a matter of choosing a sensing distance. The target material, mounting position, contamination, switching speed and control system all affect whether a sensor will perform reliably in service.
Proximity sensors detect the presence, absence or position of an object without mechanical contact. This removes the wear associated with limit switches and makes them well suited to high-cycle machinery, conveying, processing equipment and mobile plant. However, no one sensing principle suits every target or environment.
How proximity sensing works in industrial equipment
Each proximity sensor creates or monitors a field, beam or signal in front of its sensing face. When a target changes that signal, the sensor switches its output. The way that change is detected determines which materials the sensor can recognise, how far it can sense and how it responds to dust, water, vibration and surrounding machinery.
A stated sensing range should be treated as a starting point. Actual performance can be reduced by target size, target material, mounting arrangement, temperature and electrical noise. For critical interlocks, position feedback and machine safety functions, allow a practical sensing margin rather than designing to the maximum catalogue range.

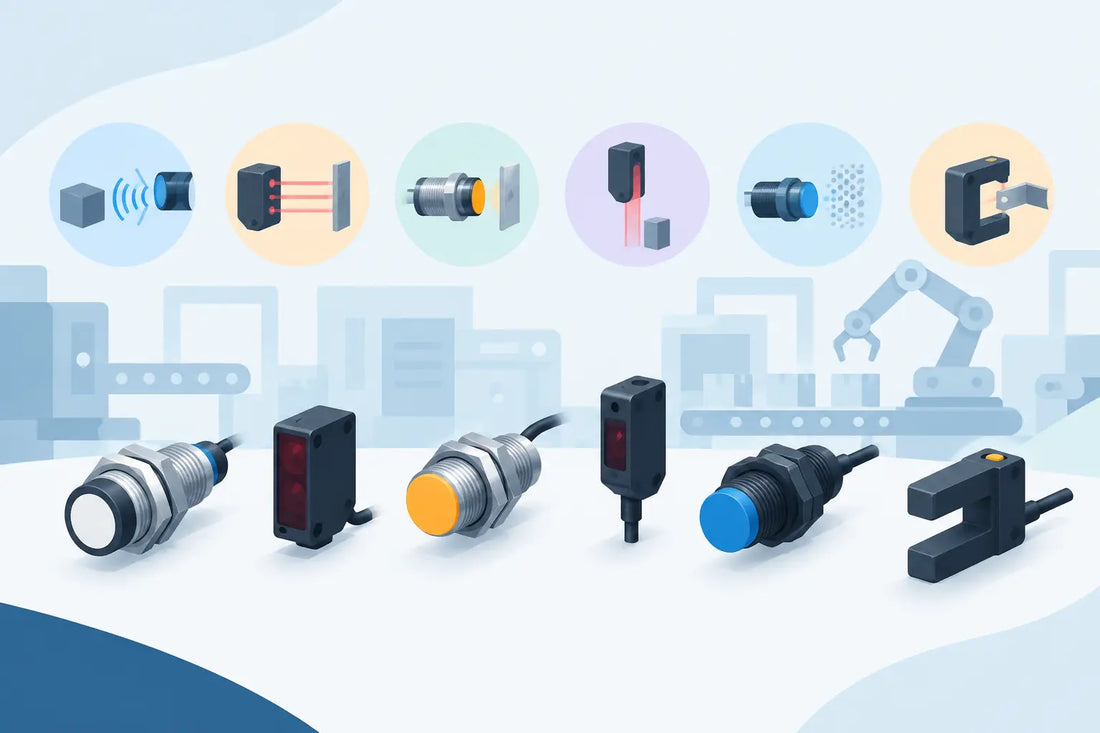

Types of proximity sensors used in industry
Inductive proximity sensors
Inductive sensors are the standard choice for detecting metal objects. They generate an electromagnetic field and detect the disturbance caused when a conductive target enters that field. They are widely used to confirm cylinder positions, detect gear teeth, count metal components and verify the presence of pallets, fixtures or machine parts.
Their main strengths are fast response, compact construction and good resistance to oil, dust and vibration. Standard inductive sensors achieve their nominal range against mild steel. Stainless steel, aluminium, brass and copper can reduce the effective sensing distance, sometimes significantly. Where non-ferrous metals are the target, select a sensor with appropriate correction factors or a factor-one design that provides more consistent detection across different metals.
Capacitive proximity sensors
Capacitive sensors detect a change in capacitance caused by a target entering the sensing field. Unlike inductive sensors, they can detect metallic and non-metallic materials, including plastics, timber, paper, powders, granules, liquids and glass. This makes them particularly useful for level detection through non-metallic vessel walls and for confirming the presence of packaging materials.
The trade-off is sensitivity to environmental conditions. Moisture, product build-up, changing material density and contamination on the sensing face can alter performance. Most capacitive sensors have an adjustable sensitivity setting, but adjustment alone does not solve an unsuitable installation. A stable mounting position, realistic set point and consideration of vessel wall thickness are essential for dependable operation.
Photoelectric sensors
Photoelectric sensors use emitted light to detect an object or change in reflected light. They are often grouped with proximity sensors because they provide non-contact presence detection, although their operating principle differs from inductive and capacitive models. Their sensing range can be substantially greater, making them practical for carton detection, product counting, conveyor control, access monitoring and object positioning.
Through-beam sensors use separate emitter and receiver units and generally provide the longest range and strongest signal margin. Retro-reflective sensors use a reflector opposite the sensor, while diffuse-reflective models detect light reflected directly from the target. Diffuse sensing is simple to install but can be affected by target colour, surface finish and background objects. Transparent packaging, shiny metal and irregular products may require specialised optical sensors or careful testing on the actual product.
Ultrasonic proximity sensors
Ultrasonic sensors emit high-frequency sound pulses and measure the returning echo. They can detect many materials regardless of colour, transparency or surface finish, including clear plastic, glass, liquids and some uneven surfaces that can challenge photoelectric sensing.
They are commonly used for level measurement, web and loop control, object detection and position monitoring where optical contrast is poor. Their limitations include a blind zone close to the sensor, slower switching than many inductive devices, and sensitivity to air temperature, turbulence and target angle. Soft or highly angled materials may absorb or deflect sound rather than return a usable echo. In washdown or outdoor applications, confirm the sensor housing, connector system and environmental rating suit the installation.
Magnetic proximity sensors
Magnetic sensors respond to a magnetic field rather than the object material itself. Reed switches, Hall-effect sensors and magnetoresistive sensors are commonly used with a magnet fitted to a pneumatic or hydraulic cylinder piston. They provide a compact, non-contact method of confirming extend, retract or intermediate cylinder positions.
For cylinder feedback, the sensor must match the cylinder profile, magnet strength and required mounting arrangement. Nearby magnets, ferrous structures and high-current conductors can influence switching behaviour. Hall-effect and magnetoresistive options are often preferred where high switching life, vibration resistance or repeatable performance is required, while reed contacts remain suitable for many conventional pneumatic applications.
Radar and microwave sensors
Radar or microwave sensors use electromagnetic waves to detect targets at longer distances than conventional close-range proximity devices. They are particularly relevant where dust, steam, rain, fog or airborne product makes optical sensing unreliable. Typical industrial uses include bulk material detection, vehicle presence, level monitoring and long-range position detection.
These sensors are not a direct replacement for an inductive switch on a machine guard or cylinder. Their operating range and detection field are broader, and surrounding structures may create unwanted reflections. Correct aiming, field adjustment and commissioning are critical. Where the application involves large equipment, outdoor infrastructure or difficult process conditions, radar can provide a practical alternative to optical methods.
Selecting the right proximity sensor type
Start with the target. If it is metal and the required range is short, an inductive sensor is generally the most reliable and economical option. If the target is plastic, timber, powder or liquid, capacitive, photoelectric or ultrasonic sensing may be more suitable. For pneumatic cylinder position feedback, a magnetic sensor designed for the cylinder body is normally the correct approach.
Next, assess the operating environment. Coolant, oil and metal swarf favour sealed inductive sensing. Dusty conveyors may require through-beam photoelectric sensing rather than diffuse reflection. Grain, powder, steam and variable-colour products can favour ultrasonic or radar technology. Food and beverage, mining, water and wastewater applications may also require specific ingress protection, chemical resistance, washdown suitability or stainless-steel housings.
The electrical interface matters as much as the sensing principle. Confirm the supply voltage, output configuration and controller input requirements before ordering. Common DC sensor outputs include PNP and NPN, normally open and normally closed, with two-wire, three-wire and four-wire connection arrangements. A replacement sensor that fits mechanically but has the wrong output type can create commissioning delays or incorrect machine logic.
Also consider mounting. Flush, or shielded, inductive sensors can be mounted level with surrounding metal but have shorter sensing ranges. Non-flush, or unshielded, sensors provide greater range but need clearance around the sensing face to avoid false operation. Cable exit direction, connector access, bracket rigidity and target alignment should be resolved during design rather than left to site installation.
Specification checks before installation
Before finalising a sensor, validate the target size and material, required sensing distance, repeatability, switching frequency and available mounting space. Confirm whether the sensor needs an LED status indication, adjustable sensitivity, timer function, analogue output or IO-Link communication for diagnostics and parameter control.
For safety-related functions, a general-purpose proximity sensor is not automatically a safety device. Guard monitoring, personnel protection and hazardous-motion control require an assessed safety function and appropriately rated safety components. Treat process detection and machinery safety as separate engineering requirements, even when both use non-contact sensing.
A practical test with the real target remains one of the best ways to avoid nuisance trips and missed detections. Tech Source can assist with product selection and application support where sensing conditions, control requirements or environmental exposure make the choice less straightforward. The right sensor is the one that continues to switch predictably after months of vibration, contamination and normal plant operation.
