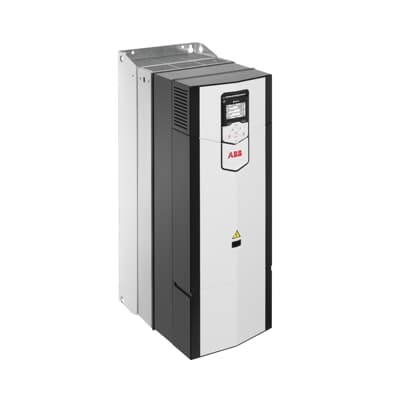

ABB Premium Industrial Drives Ultra Low Harmonics wall mount ACS880-31( 3Kw-110Kw)

Our ultra-low harmonic drives produce exceptionally low harmonic content and exceed the requirements set by low harmonic recommendations. The compact ACS880-31 drive has harmonics mitigation built-in. This includes an active supply unit and integrated low harmonic line filter. So there is no need for external filters, multi-pulse arrangements or special transformers. By managing and controlling harmonics, the ACS880-31 reaches unity power factor.

The active supply unit in the drive is able to boost output voltage to guarantee full motor voltage even when the supply voltage is below nominal. The drive also offers the possibilty for network power factor correction to compensate for low power factors of equipment connected to the same network.

Highlights

Power range 3 to 110 kW / 380 to 500 VIP20, IP21 and IP55 enclosure classes - flange mounting possibility as an option

Total harmonic current distortion typically <3% in nominal situation and undistorted network

One compact drive package - no additional hardware needed

Simple and cost-efficient installation

Factory tested solution for high reliability

Built on ABB’s common drives architecture

Direct torque control (DTC) as standard

Integrated safety including STO as standardSupports a wide range of fieldbus protocols, I/O and encoder options
