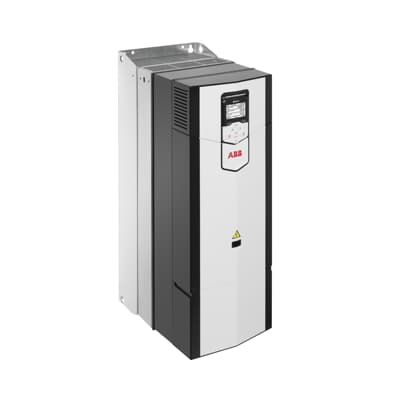

ABB Premium Industrial Drives Wall Mount Regenerative ACS880-11 (2.2Kw-110Kw)

The compact ACS880-11 captures and utilizes braking energy which results in cost savings for the user. With regenerative functionality, the braking energy of the motor is returned back to the drive and distributed forward to the supply network so that it can be utilized by other equipment. With mechanical or resistor braking energy is wasted as heat and additional cooling is often required. In comparison with other braking methods ACS880-11 brings more energy savings and enables simplified and cost efficient installation.

Equipped with an active supply unit and integrated low harmonic line filter, the regenerative drive produces exceptionally low harmonic content.

Highlights

Power range 3 to 110 kW / 380 to 500 VIP20, IP21 (as standard) and IP55 enclosure classes flange mounting possibility as an option

One compact package - no additional hardware needed

Possibilty to regenerate 100% of the power continously

Total harmonic current distortion typically <3% in nominal situation and undistorted networkFactory tested solution for high reliability

Built on ABB's common drives architectureDirect torque control (DTC) as standard

Integrated safety including STO as standard

Supports a wide range of fieldbus protocols, I/O and encoder options
