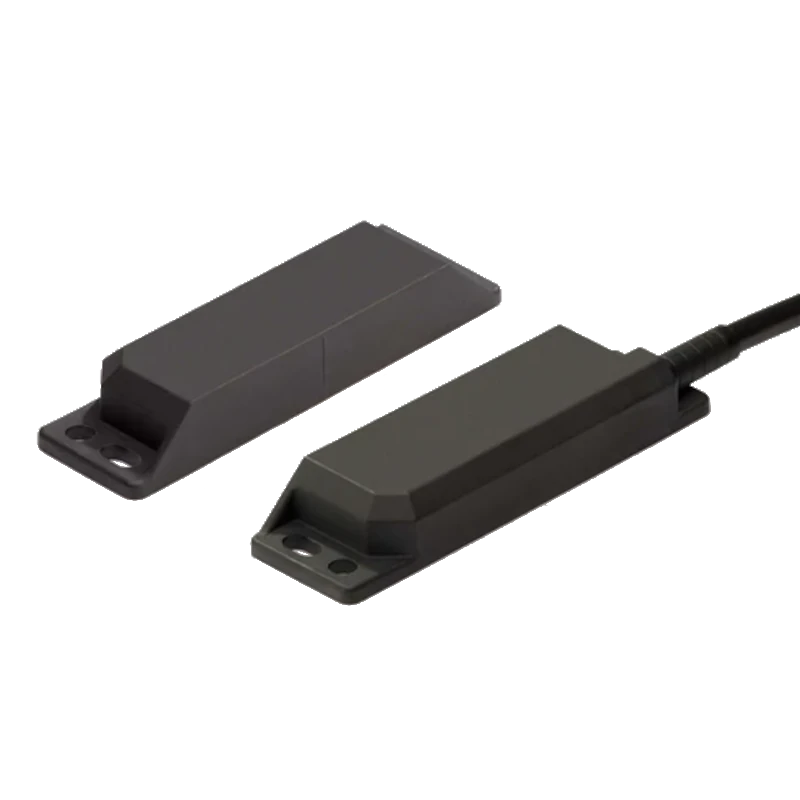

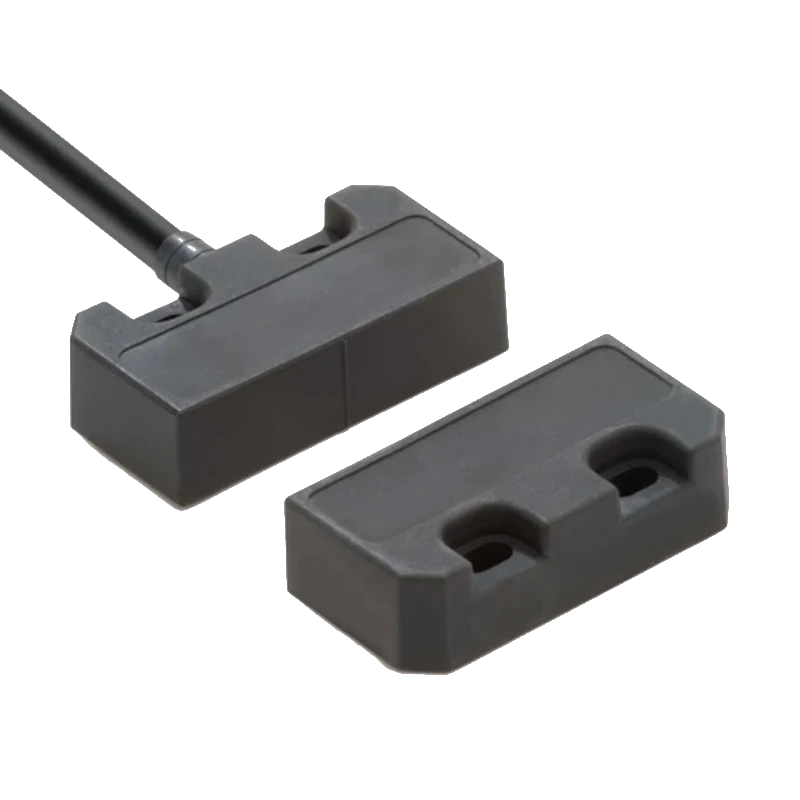

Omron Non-contact Safety switches RFID technology F3S-TGR

Omron Non-contact Safety switches RFID technology F3S-TGR


Add to Enquiry
RFID Non-contact switches are designed to monitor hinge, sliding or
removal guard doors.
• Based on RFID technology (code) and hall technology
(distance check)
• The RFID-design covers two operation models with very high
anti-tamper level:
• M-types (Master coded): Any sensor works with any actuator
(re-teach needed if exchange of actuator)
• U-types (Unique coded): Each sensor and actuator use a unique
code. This is a solution for applications that requires even a higher
anti-tamper level
• Connect up to 20 switches in series
• LED supports easy diagnosis
• Compensation of mechanical tolerances
• Non-contact – no abrasion – no particles
• Operates with all OMRON safety controllers
• Suitable for CIP/SIP processes and high pressure cleaning due
IP69K (pre-wired types)
• Conforms to safety categories up to PLe acc. EN ISO 13849-1
