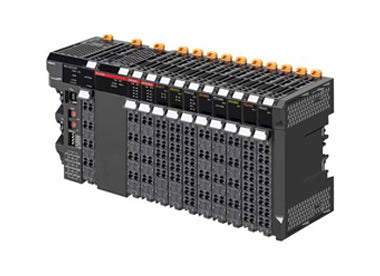

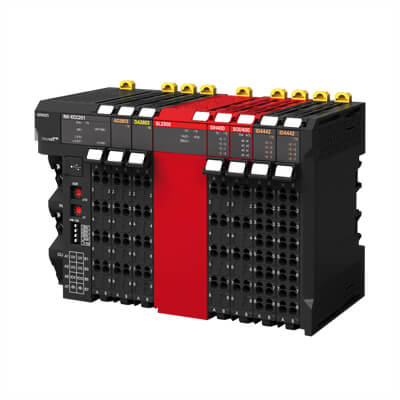

Omron NX series Remote I/O system

Modern machine control requires system-wide synchronisation of motion axes with microsecond accuracy. The NX I/O system offers this timing accuracy and repeatability for a wide variety of in- and outputs. Its ultra-fast internal bus system is synchronised with the Distributed Clock of the EtherCAT network, resulting in system-wide deterministic I/O operation.

• Ideal match with Sysmac Machine automation controllers and CJ2-series PLC's
• Synchronous I/O updates, system-wide, with less than 1 μs jitter using EtherCAT
• High density: up to 16 digital or 8 analog signals in 12 mm width
• Removable wiring terminals for easy system assembly and testing

Ethenet/IP Remote IO Configuration

Ethercat Remote IO Configuration
