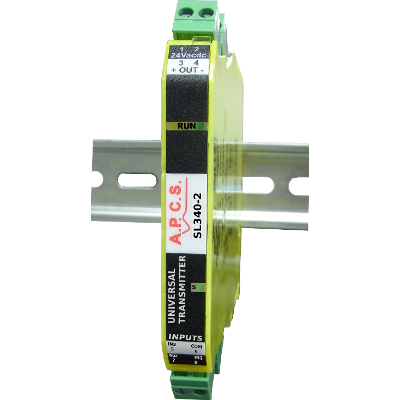

Universal Signal Transmitter SL340

The SL340 is a field configurable isolating transmitter/converter providing true 3-way
galvanic isolation up to 2500Vrms for use with industrial probes and millivolt signals.
Input and output are set using the SL300 programmer connected to a PC USB via the
SL303 interface. The connection socked is accessed under a door flap on the front of
the module.

SL340 is our universal transmitter which can be programmed to use as RTD , mV , Strain gauge, Potentiometer , Resistance or Thermocouple transmitter.
